屋顶防坠落系统
H-RAIL + TOWER | TOWER A2 | TOWER XL
从美学角度来看，传统的防坠落系统可能缺乏吸引力或过度限制了工作区域内的安全移动。H-RAIL 轨道系统是一种安全且适应性强的解决方案，其特点是视觉影响最小。由于其设计，它只需要几个固定点，就可以让用户在不同的配置中搭建刚性锚固线。H-RAIL 是理想的屋顶防坠落系统，适用于高空作业，同时具有区域限制的功能。

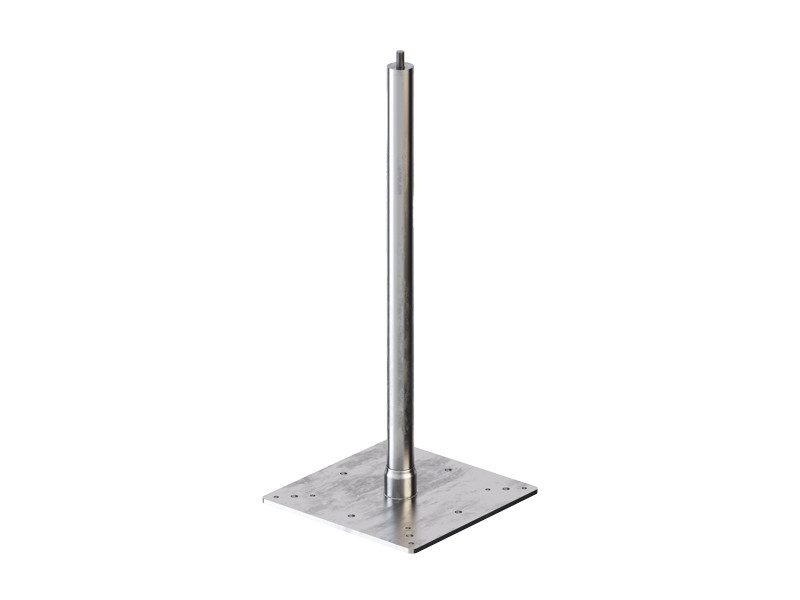

H-RAIL 与 TOWER、TOWER A2 和 TOWER XL 立柱搭配使用，提供了抬升轨道以越过屋顶障碍物的可能性。只需通过专用板即可将轨道安装在立柱上。

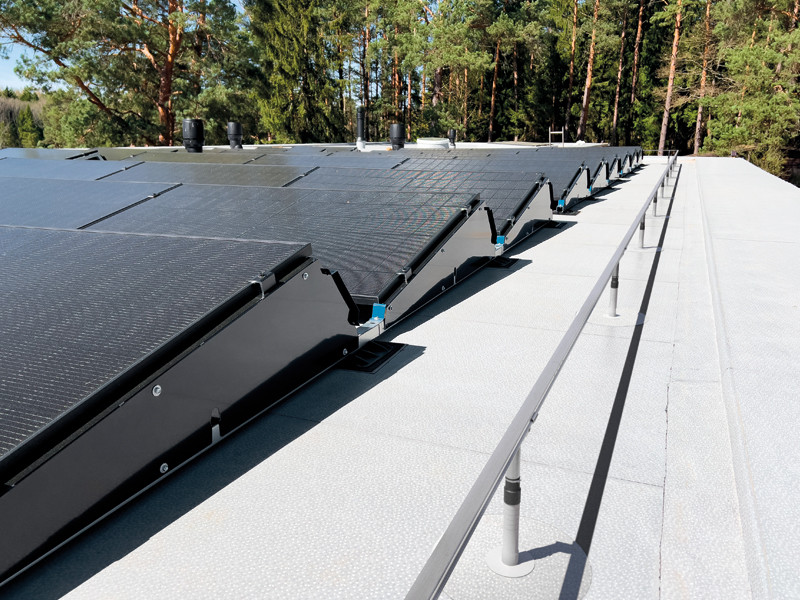

TOWER + H-RAIL 屋顶防坠落装置
H-RAIL 系统经过精心设计，可与配备四个轮子的专用滑动装置配合使用，使其成为刚性轨道安装式防坠落生命线的理想选择。

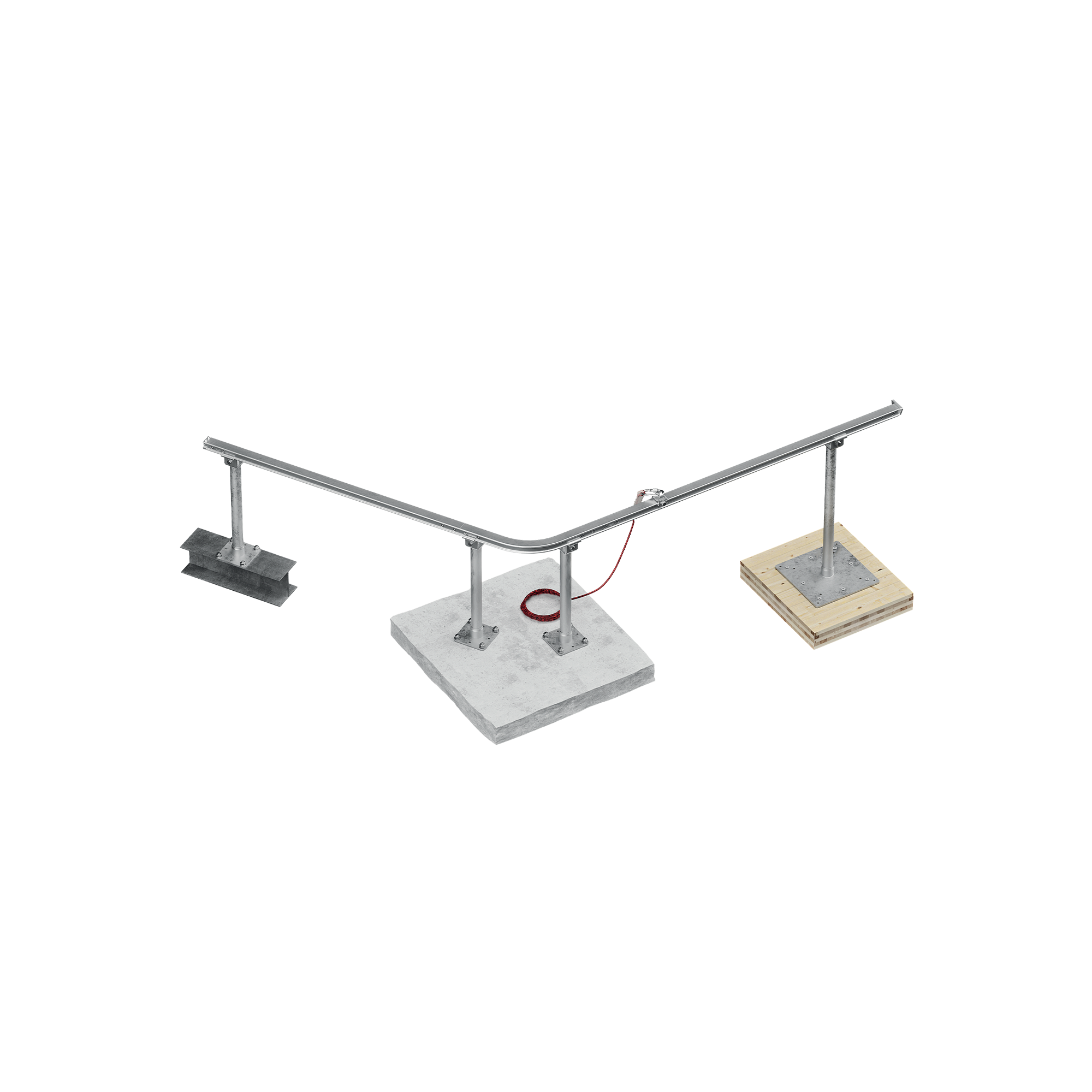

H-RAIL 防坠落系统的多功能性使其能够安装在不同类型的结构上，包括木材、混凝土和钢材，完美地适应任何安装要求。H-RAIL + TOWER 通常安装在屋顶上，因此搭配 H-RAIL ON FLOOR产品。TOWER立柱可以升高轨道。其他版本可以进行其他类型的安装，例如 H-RAIL OVERHEAD可位于承重结构的下方，H-RAIL ON WALL可直接安装在墙壁上。
由于能够实现立柱之间高达 6 米的间距，安装过程只需要几个固定点，大大简化了 H-RAIL 的安装。
安全第一
确保操作员获得最全面和有效的支持措施至关重要。除了能够越过屋顶障碍物进行安装的优点之外， 像 H-RAIL + TOWER 轨道系统这样的刚性系统可以避免因操作员坠落而导致绳索变形，而且无需像柔性防坠落生命线考虑垂直净空（vertical clearance）。
H-RAIL 采用极高品质的耐用材料制成，可为施工操作员和用户提供持久保护，安心又安全。凭借其多功能性和可靠性，该产品成为工业维护和住宅建筑干预等广泛场景应用的理想选择，有助于提高安全标准并保护高空作业人员的生命安全。
文件
技术数据表
|
|
|---|---|
符合性声明（DOC）
|
|
安全规程、安装和使用说明
|
|
File BIM.ifc
|
|
File BIM.rfa
|
|
符合性声明（DOC）
|
操作规程
| 安装手册 |
|---|
RAIL
| CODE | description | pcs. |
|---|---|---|
| RAIL3000 | 3m aluminium rail | 1 |
| RAILC90 | 90° aluminium bend for rail | 1 |
| RAILC120 | 120° aluminium bend for rail | 1 |
| RAILC135 | 135° aluminium bend for rail | 1 |
| RAILC150 | 150° aluminium bend for rail | 1 |
SUPPORT
| CODE | description | pcs. |
|---|---|---|
| RAILBRAT | support element for rail | 1 |
| RAILBRAT16 | M16 plate for RAILBRAT | 1 |
TERMINAL ELEMENT
| CODE | description | pcs. |
|---|---|---|
| RAILEND | rail end-stop without exit | 1 |
| RAILENDOPEN | rail end-stop with exit | 1 |
JOINT
| CODE | description | pcs. |
|---|---|---|
| RAILJUN | junction for rails and bends | 1 |
SLIDING DEVICE
| CODE | description | pcs. |
|---|---|---|
| RAILSLIDE | sliding device | 1 |
| RAILSLIDEWALL | slide for wall application | 1 |
TOOL
| CODE | description | pcs. |
|---|---|---|
| RAILJUNTOOL | template for rail junction holes | 1 |
| RAILPLATE | Rail system ID plate | 1 |
FASTENING
| CODE | description | pcs. |
|---|---|---|
| RAILOCKSCREW | Lock screw | 250 |
| RAILSCREW | DIN 7991 A2-70 | 50 |
TARGAHORxy
| CODE | description | pcs. |
|---|---|---|
| TARGAHORIT | Label plate for PATROL and H-RAIL systems IT | 1 |
| TARGAHORDE | Label plate for PATROL and H-RAIL systems DE | 1 |
| TARGAHOREN | Label plate for PATROL and H-RAIL systems EN | 1 |
| TARGAHORES | Label plate for PATROL and H-RAIL systems ES | 1 |
| TARGAHORFR | Label plate for PATROL and H-RAIL systems FR | 1 |
| TARGAHORPT | Label plate for PATROL and H-RAIL systems PT | 1 |
| TARGAHORRU | Label plate for PATROL and H-RAIL systems RU | 1 |
| TARGAHORCS | Label plate for PATROL and H-RAIL systems CS | 1 |
| TARGAHORDA | Label plate for PATROL and H-RAIL systems DA | 1 |
| TARGAHOREL | Label plate for PATROL and H-RAIL systems EL | 1 |
| TARGAHORET | Label plate for PATROL and H-RAIL systems ET | 1 |
| TARGAHORFI | Label plate for PATROL and H-RAIL systems FI | 1 |
| TARGAHORHR | Label plate for PATROL and H-RAIL systems HR | 1 |
| TARGAHORHU | Label plate for PATROL and H-RAIL systems HU | 1 |
| TARGAHORIS | Label plate for PATROL and H-RAIL systems IS | 1 |
| TARGAHORJA | Label plate for PATROL and H-RAIL systems JA | 1 |
| TARGAHORLT | Label plate for PATROL and H-RAIL systems LT | 1 |
| TARGAHORLV | Label plate for PATROL and H-RAIL systems LV | 1 |
| TARGAHORNL | Label plate for PATROL and H-RAIL systems NL | 1 |
| TARGAHORNO | Label plate for PATROL and H-RAIL systems NO | 1 |
| TARGAHORPL | Label plate for PATROL and H-RAIL systems PL | 1 |
| TARGAHORRO | Label plate for PATROL and H-RAIL systems RO | 1 |
| TARGAHORSK | Label plate for PATROL and H-RAIL systems SK | 1 |
| TARGAHORSL | Label plate for PATROL and H-RAIL systems SL | 1 |
| TARGAHORSV | Label plate for PATROL and H-RAIL systems SV | 1 |
| TARGAHORTR | Label plate for PATROL and H-RAIL systems TR | 1 |
| TARGAHORZH | Label plate for PATROL and H-RAIL systems ZH | 1 |
| TARGAHORAR | Label plate for PATROL and H-RAIL systems AR | 1 |
